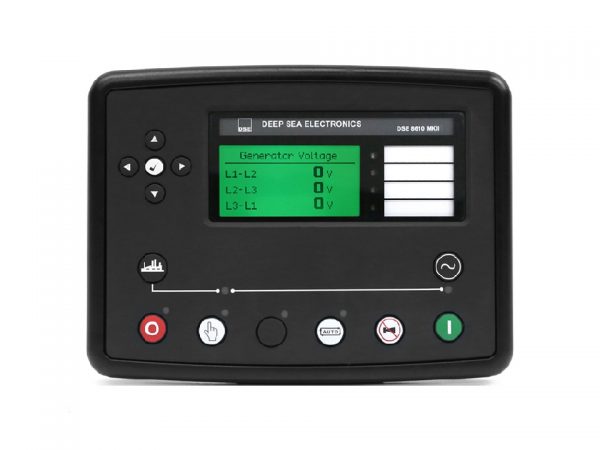

DSE8610-MKII Synchronization Controller

Buy all Deep Sea (DSE) products like generator controllers, energy meters, panel meters, synchronization controllers, auto mains failures (AMF), auto transfer switches (ATS), etc, online in Pakistan. You can buy DSE8610 synchronization controller online anywhere from Pakistan or by visiting our Electronic Power House (EPH) and Tetralink Technologies (TLT) in Lahore who are the distributors of the Deep Sea (DSE) in Pakistan. All original Deep Sea products are available at very reasonable and best prices in Pakistan.

Key Features

• Comprehensive synchronizing & load sharingcapabilities
• Built-in governor and AVR control
• Baseload (kW export) control
• Positive & negative kVAr export control
• Mains (Utility) decoupling protection
• 4-Line backlit LCD text display
• Multiple Display Languages
• Five key menu navigation
• LCD alarm indication
• Heated display option available
• Customisable power-up text and images
• DSENet expansion compatibility
• Data logging & trending facility
• Advanced PLC editor
• Protections disable the feature
• Fully configurable via PC using
• USB, RS232, RS485 & Ethernet communication
• Front panel configuration with PIN protection
• Power save mode
• 3 phase generator sensing and protection
• Generator current and power monitoring (kW, kvar, kVA, pf)
• kW and kvar overload alarms
• Reverse power alarms
• Over current protection
• Unbalanced load protection
• Independent earth fault protection
• Breaker control via fascia buttons
• Fuel and start outputs configurable when using CAN
• 8 configurable DC outputs
• 2 configurable volt-free relay outputs
• 4 configurable analogue/digital inputs
• Built-in sensors to support 0 V to 10 V & 4 mA to 20 mA
• 12 configurable digital inputs
• Configurable 5 stage dummy load and load shedding outputs
• CAN, MPU and alternator frequency speed sensing in one variant
• Real-time clock
• Manual and automatic fuel pump control
• Engine run-time scheduler
• Fuel usage monitor and low fuel level alarms
• Simultaneous use of all communication ports
• Remote SCADA monitoring via various DSE software applications
• MODBUS RTU & TCP support with configurable MODBUS pages for integration into building management systems (BMS)
• Advanced SMS messaging (additional external modem required)
• Start & stop capability via SMS messaging
• 3 configurable maintenance alarms
• Compatible with a wide range of CAN engines, including tier 4 engine support
• Uses DSE Configuration Suite PC Software for simplified configuration
• Power modes for when in parallel with the mains
• Redundant MSC communication wired to CAN ports
• True manual breaker control when in CAN mode
• Water in fuel digital input
• Fuel tank bund alarm digital input
• Separate ramp up and ramp down rates configurable via PLC
• Configurable CAN message time- outs
• In-built SNMP
• Configurable CAN transmit & receive
• Battery chargers on DSENet
• Persistent governor & AVR outputs
• Filter generator voltage display
• Filter bus voltage display
• Inhibit remote start
• Power & reactive power control
• Remote start on load demand
• Configurable engine icons
• Alternative load demand schemes
• Variable speed generator support
• CAN AVR support

Description

The DSE8610 MKII is a market-leading Synchronising Auto Start Control Module suitable for use in a multi-generator load share system, designed to synchronize up to 32 generators including electronic and non-electronic engines.

The DSE8610 MKII monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault conditions.

System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED, and audible sounder. The
event log records 250 events to facilitate easy maintenance, and an extensive number of fixed and flexible monitoring, metering, and protection features are included.

Designed to offer increased built-in support for active sensors for 0 V to 10 V & 4 mA to 20 mA. Comprehensive communication and system expansion options are available.

Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences timers and alarms. With all communication ports capable of being active at the same time, the DSE8610 MKII is ideal for a wide variety of demanding load share applications.

The Advanced PLC tool within Configuration Suite provides users with an extremely powerful configuration tool for the most demanding applications.

Comprehensive Features List

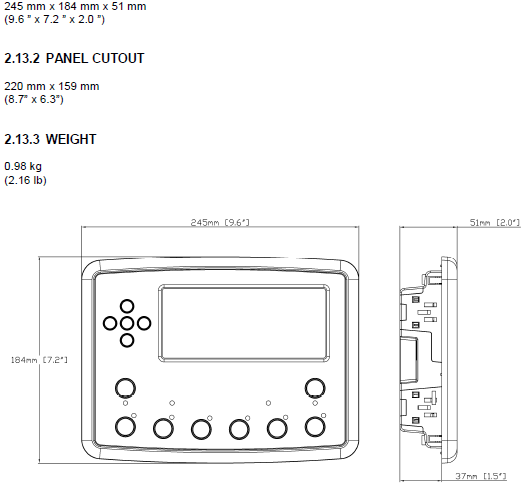

DSE8610 Dimensions & Mounting

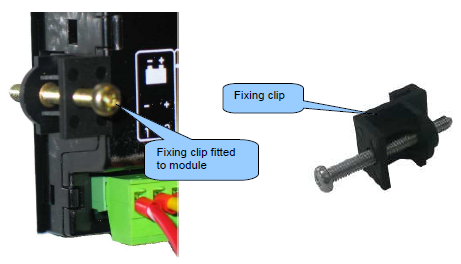

Fixing Clips

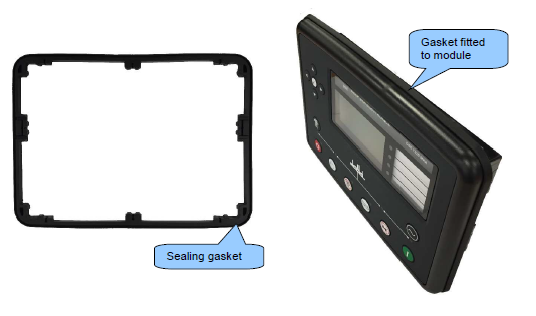

Silicon Sealing Gasket

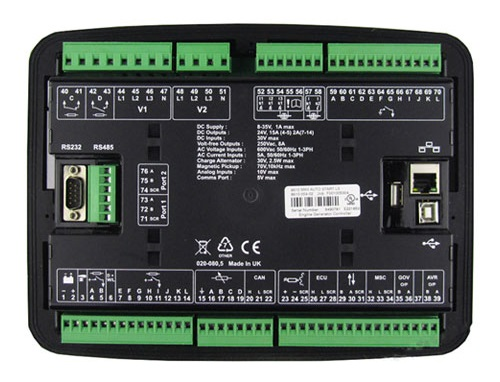

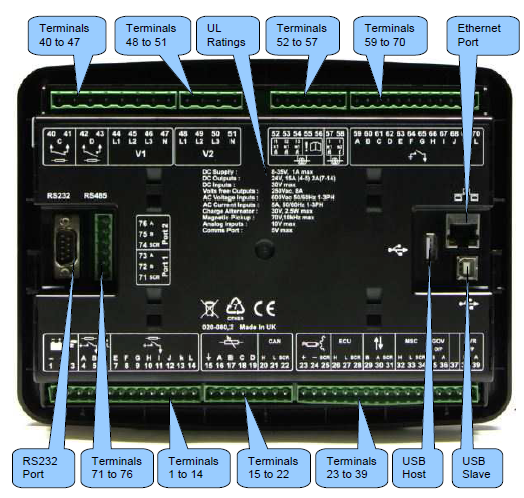

User Connections

Description of Controls

Connections Diagram

Click Here To Download DSE8510-MKII User Manual

Click Here To Download DSE8610-MKII Config. Suite PC Software Manual
