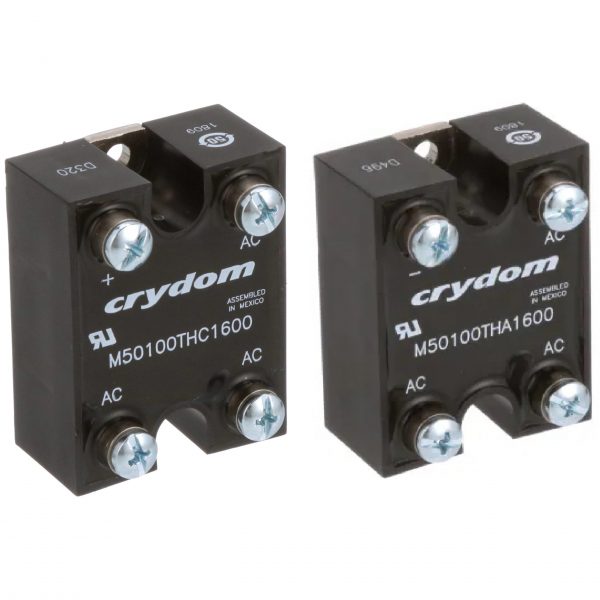

M50100THC1600 and M50100THA1600 Crydom Mexico 100A 1600V Bridge (Pair)

Crydom
Compare

Key Features

  • 3-Phase Positive and Negative Pair
  • 100A/1600V Diode Module
  • High Surge Current Rectifier Circuits
  • 5 Different Circuits to Choose from
  • Up to 1600 Volt Blocking Standard
  • UL Recognized E72445

₨ 45,000.00 ₨ 50,000.00

Compare

M50100THC1600 and M50100THA1600 Crydom Mexico 100A 1600V Bridge

You can buy Module M50100THC1600 and M50100THA1600 Crydom Mexico 100A 1600V Bridge online anywhere from Pakistan or by visiting Electronic Power House (EPH) and Tetralink Technologies (TLT) in Lahore. We are the main distributor of generator rectifiers in Pakistan. We have a variety of generator rectifiers always readily available in stock. All international brands of generator controllers and their electronic parts also available at very reasonable and best prices in Pakistan.

Key Features of M50100THC1600 and M50100THA1600

  • 3-Phase Positive and Negative Pair
  • 100A/1600V Diode Module
  • High Surge Current Rectifier Circuits
  • 5 Different Circuits to Choose from
  • Up to 1600 Volt Blocking Standard
  • UL Recognized E72445
Product Specifications
  • Average Current: 100 A
  • Bridge Type: Three Phase
  • Current Squared Time Rating: 9350 A2s
  • Dimensions: 57.5 x 44.4 x 24.1 mm
  • Diode Type: Surge Current Rectifier
  • Forward Voltage: 1.2 V
  • Height: 0.949″ (24.1mm)
  • Length: 2.263″ (57.5mm)
  • Maximum Operating Temperature: +125 C
  • Minimum Operating Temperature: -40 C
  • Mounting Type: Surface Mount
  • Non Repetitive On State Peak Current: 1500 A
  • Number of Pins: 4
  • Package Type: M50
  • Primary Type: Module
  • Repetitive Peak Voltage: 1600 V
  • Series: M50 Diode Series
  • Temperature Operating Range: -40 to +125 C
  • Width: 1.748″ (44.4mm)



Categories: , ,
brands

Crydom
color

Black

Technical Specifications

  • Average Current: 100 A
  • Bridge Type: Three Phase
  • Current Squared Time Rating: 9350 A2s
  • Dimensions: 57.5 x 44.4 x 24.1 mm
  • Diode Type: Surge Current Rectifier
  • Forward Voltage: 1.2 V
  • Height:? 0.949″ (24.1mm)
  • Length: 2.263″ (57.5mm)
  • Maximum Operating Temperature: +125 ?C
  • Minimum Operating Temperature: -40 ?C
  • Mounting Type: Surface Mount
  • Non Repetitive On State Peak Current: 1500 A
  • Number of Pins: 4
  • Package Type: M50
  • Primary Type: Module
  • Repetitive Peak Voltage: 1600 V
  • Series: M50 Diode Series
  • Temperature Operating Range: -40 to +125 ?C
  • Width: 1.748″ (44.4mm)
