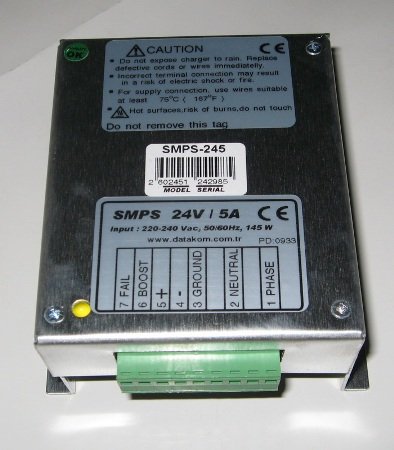

SMPS245 24V/5A Genset Battery Charger

Buy all Datakom products like generator controllers, energy meters, panel meters, synchronization controllers, auto mains failures (AMF), auto transfer switches (ATS), generator battery chargers, etc, online in Pakistan. You can buy SMPS245 24V/5A battery charger online or by visiting Electronic Power House (EPH) and Tetralink Technologies (TLT) in Lahore who are the authorized distributor of Datakom in Pakistan. All original Datakom products are available at very reasonable and best prices in Pakistan.

Features

• 100 KHz switchmode architecture
• Float charging system
• Constant voltage output
• Current limited
• Rugged design for industrial environments
• Wide operating voltage range
• Rectifier fail output
• Boost charge input
• Short circuit protection
• Overload protection
• High-temperature protection
• Plug-in connection system

Description

DATAKOM SMPS series are fixed output voltage, current limited lead acid battery chargers specially designed for permanent connection to genset starter batteries.
They maintain the batteries fully charged, without overcharging or gassing. Thanks to their continuous DC outputs they may also be used in a wide range of industrial applications where DC power is required.
When the battery voltage is below the float charge level, the charger provides constant current, nearly equal to the rated output current allowing a rapid recovery of the missing charge. When the battery voltage reaches the float level, the charger switches to constant voltage charge mode and maintains the battery fully charged, providing the maximum battery life.
The chargers are designed in switchmode technology. Their rugged design allows surviving in harsh electromagnetic environments found in the automotive industry.
The unit has overload and short circuit protection. This feature makes the units deliver only the rated current during engine cranking or a short circuit condition. They do not need disconnection during cranking. The high-temperature protection of the unit reduces the output current in case of overheating. The low weight of the unit makes it ideal for use in highly vibrating generator control panels. The small dimensions allow a compact panel design.
Thanks to their high efficiency, the self-heating of the chargers is kept in minimum levels allowing operation in warm environments. The chargers are able to operate in parallel with the engines charge alternator and other battery chargers. Multiple units may be connected in parallel in order to obtain higher current ratings.
The wide input voltage range allows the chargers to be used in most countries. The rectifier fails output is provided as a standard feature. This is a semiconductor output pulling to battery negative when the unit is not operating. Thanks to this output, a rectifier fail signal is provided for the Genset control module which will give an alarm in case of failure.

Connection Diagram

Click Here To Download SMPS245 User Manual
