UT373 Techometer
UT373 Techometer
UT373 techometer
, ,

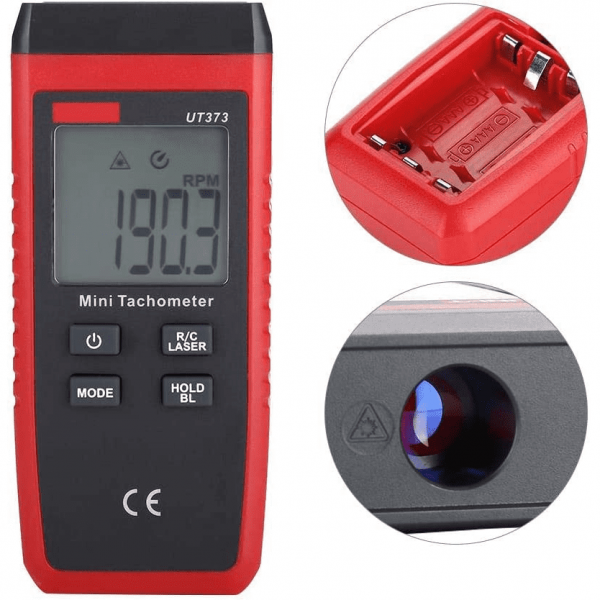

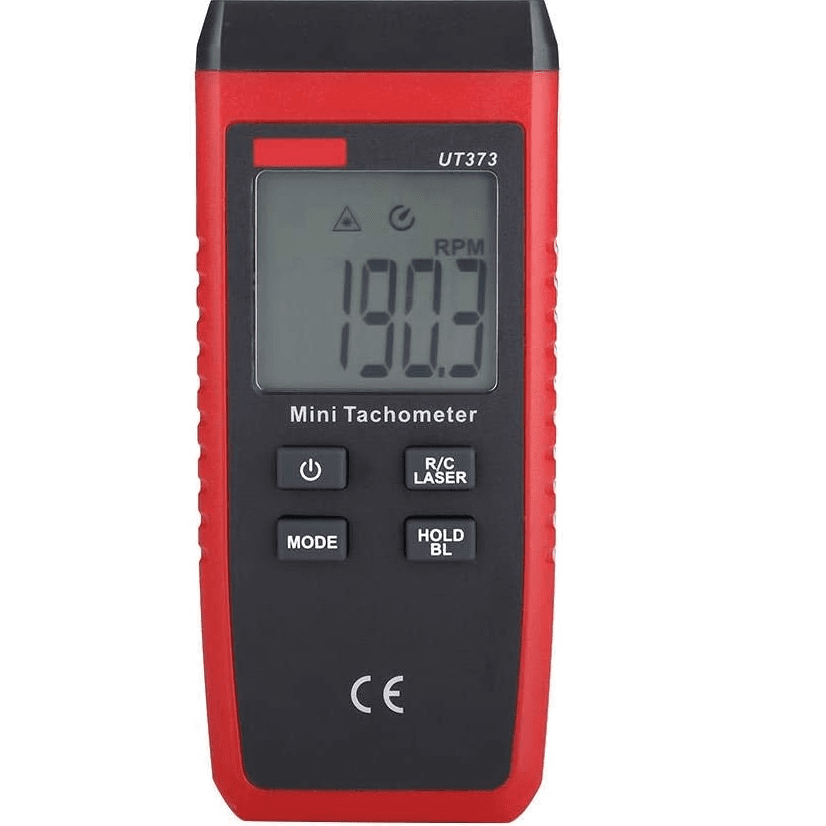

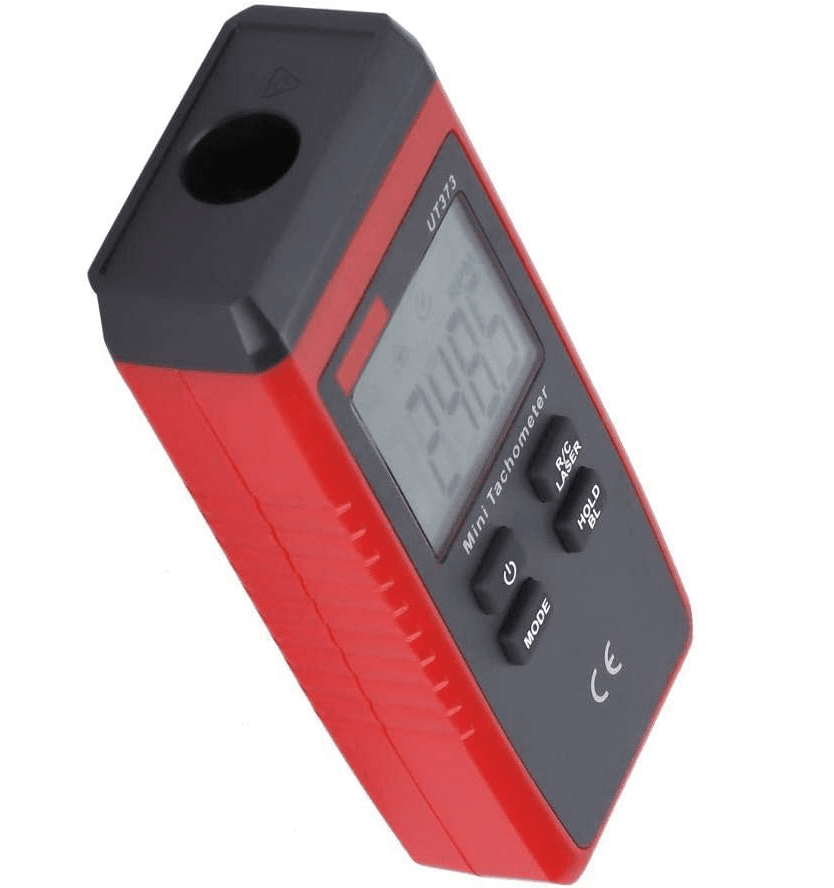

UT373 Mini Tachometer UNI-T RPM Meter

UNI-T
Compare

Key Features

  • Auto range.
  • Up to 99999 display; overload display, “OL”.
  • RPM measurement and revolution count.
  • Max/Min, Data hold.
  • Signal trigger/laser-on indication.
  • Low battery/auto power-off indication.
  • LCD backlight.

₨ 4,750.00 ₨ 5,200.00

Compare

UNI-T Mini Tachometer RPM Meter UT373

Tetralink Technologies (TLT) and Electronic Power House (EPH) are the Best Online and Physical stores for Original UNI-T products in Pakistan. You can get UT373 Mini Tachometer UNI-T RPM Meter at a very reasonable and competitive price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan. We are the main distributor of UINI-T products in Pakistan.

Description of UT373 Mini Tachometer UNI-T RPM Meter

UNI-T Mini Tachometer RPM Meter UT373 is a reliable digital non-contact tachometer used to measure the rotation speed of motors and other machines. UT373 laser tachometer is able to display results in RPM or revolution count. This portable PRM measuring instrument is able to safely measure rotational objects through a non-intrusive method. The core design of this rpm counter is the microcontroller, photoelectric speed sampling processing, unique design makes it a superior performance tachometer.

Features:

  • Auto range.
  • Up to 99999 display; overload display, “OL”.
  • RPM measurement and revolution count.
  • Max/Min, Data hold.
  • Signal trigger/laser-on indication.
  • Low battery/auto power-off indication.
  • LCD backlight.

Specifications:

  1. RPM measurement range: 10.0～9999.9 RPM ±(0.04%+2), 10000～99999 RPM ±(0.04%+2)
  2. RPM measurement resolution: 0.1 to 1
  3. Counting measurement range: 0～99999 count
  4. Counting measurement resolution: 1 count (<10kHz, pulse width10 ~ 90%)
  5. Counting measurement accuracy: ±1 count
  6. Auto range: Yes
  7. Auto power off: Yes
  8. Low battery indication: Yes
  9. Laser-on indication: Yes
  10. Data hold: Yes
  11. Maximum/minimum: Yes
  12. Rotating speed/count function switching: Yes
  13. Overload indication: Yes
  14. LCD backlight: Yes
  15. Refresh rate: About 1s to 7s (depending on the speed, >120 rpm for 1s)
  16. Sensor type: Photodiodes and laser tubes
  17. Target distance: 50mm ~ 200mm
  18. Measuring angle: The angle between the laser and the surface being measured is less than 30°
  19. Display: 5-digit segment code; 99999 max display
  20. Drop test: 1m
  21. Working temperature and humidity: 0 ° C to 50 ° C (no more than 80%RH)
  22. Storage temperature and humidity: -20 ° C to + 60 ° C (no more than 80%RH)
  23. Protection rating: IP65
  24. Power supply: 3 1.5V batteries (AAA)
  25. Battery life: Continuous work for 12 hours
  26. Product color: Red and grey
  27. Product weight: 85g (excluding battery)
  28. Product size: 183.8x56x34mm

www.tetralinktech.com and www.eph.com.pk are the Best Online and Physical stores  for  buying Uni-T meters. Here you get this meter at a very reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
brands

UNI-T
  • RPM measurement range: 10.0～9999.9 RPM ±(0.04%+2), 10000～99999 RPM ±(0.04%+2)
  • RPM measurement resolution: 0.1 to 1
  • Counting measurement range: 0～99999 count
  • Counting measurement resolution: 1 count (<10kHz, pulse width10 ~ 90%)
  • Counting measurement accuracy: ±1 count
  • Auto range: Yes
  • Auto power off: Yes
  • Low battery indication: Yes
  • Laser-on indication: Yes
  • Data hold: Yes
  • Maximum/minimum: Yes
  • Rotating speed/count function switching: Yes
  • Overload indication: Yes
  • LCD backlight: Yes
  • Refresh rate: About 1s to 7s (depending on the speed, >120 rpm for 1s)
  • Sensor type: Photodiodes and laser tubes
  • Target distance: 50mm ~ 200mm
  • Measuring angle: The angle between the laser and the surface being measured is less than 30°
  • Display: 5-digit segment code; 99999 max display
  • Drop test: 1m
  • Working temperature and humidity: 0 ° C to 50 ° C (no more than 80%RH)
  • Storage temperature and humidity: -20 ° C to + 60 ° C (no more than 80%RH)
  • Protection rating: IP65
  • Power supply: 3 1.5V batteries (AAA)
  • Battery life: Continuous work for 12 hours
  • Product color: Red and grey
  • Product weight: 85g (excluding battery)
  • Product size: 183.8x56x34mm
