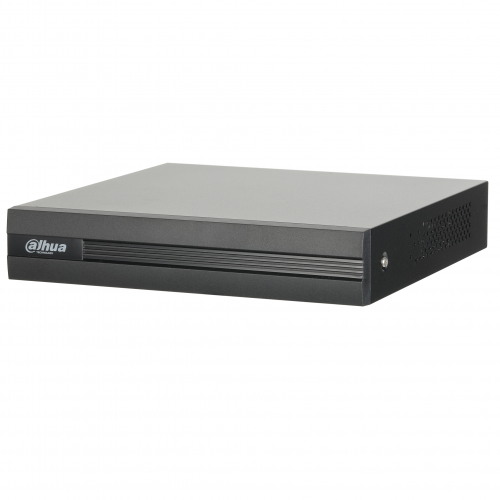

DH-XVR1A04 DVR By Dahua Technology

Availability:

Out of stock
Compare

₨ 4,800.00 ₨ 5,000.00

Out of stock

Compare

Buy Dahua Technology products like CCTV security cameras, IP cameras, CCTV Cables, DVRs, etc. online from anywhere in Pakistan. You can buy DH-XVR1A04 DVR without HDD online OR by visiting Electronic Power House (EPH) OR Tetralink Technologies (TLT) who are one of the main suppliers of security systems of Dahua Technologies in Lahore. All original Dahua Technolgy products are available at very reasonable and best prices in Pakistan.

Features

  • H.264 video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
  • Long transmission distance over coax cable
  • Supports 1 SATA HDD, up to 6TB
  • Weight: 1.0kg
  • Size: 332mm x 240mm x 64mm

System Overview

Dahua, as a technology leader, is always the first-ever developed the shining new technology in the security industry, and today we present Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end-user the simplicity of an analog system, namely lower system cost, simple installation, and use of an existing cable. It is ideal for a wide range of civil applications such as a retail store, home protection, and so on.
Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance.

Functions

HDCVI/AHD/TVI/CVBS/IP Auto-detect

The XVR can auto recognize the signal of the front-camera without any setting. It makes operation more friendly and convenient.

IPC Input Supported

The XVR1A04 supports up to 2MP IPC input, and XVR1A08 supports up to 5MP IPC input.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Long Distance Transmission

The HDCVI system supports long-distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P.

Smart Search

This function helps you get more motion to detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

Perfect Image Quality

A high-performance chip provides perfect image quality with better color reproduction.

P2P

Monitor at any time and anywhere. Easily and conveniently manage the device.

Click Here To Download DH-XVR1A04 DVR Data Sheet

Click Here To Download DH-XVR1A04 DVR Firmware

Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , ,

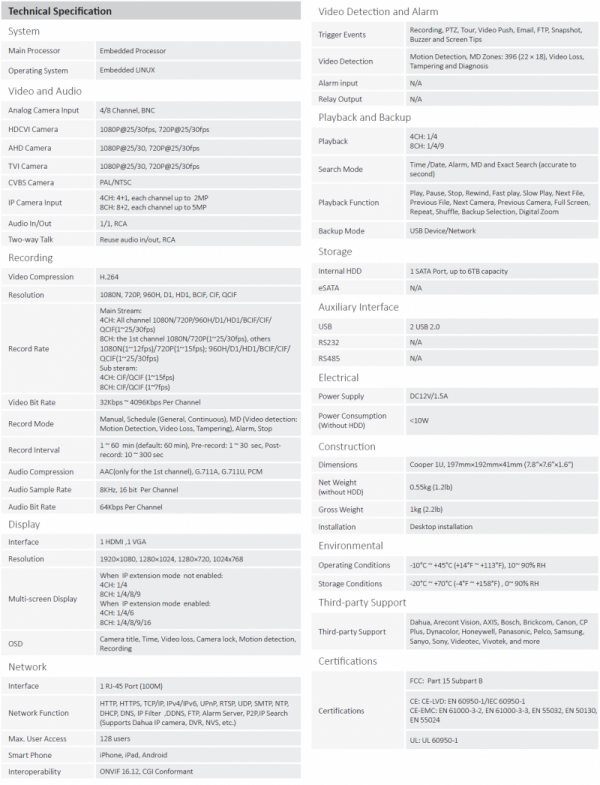

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

4/8 Channel, BNC

HDCVI Camera

1080P@25/30fps, 720P@25/30fps

AHD Camera

1080P@25/30, 720P@25/30fps

TVI Camera

1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4CH: 4+1, each channel up to 2MP

8CH: 8+2, each channel up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Video Compression

H.264

Resolution

1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main Stream:

4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

8CH: the 1st channel 1080N/720P(1~25/30fps), others?1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

Sub steram:

4CH: CIF/QCIF (1~15fps)

8CH: CIF/QCIF (1~7fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920?1080, 1280?1024, 1280?720, 1024×768

Multi-screen Display

When IP extension mode not enabled:

4CH: 1/4

8CH: 1/4/8/9

When IP extension mode enabled:

4CH: 1/4/6

8CH: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB 2.0

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC12V/1.5A

Power Consumption

(Without HDD)

<10W

Construction

Dimensions

Cooper 1U, 197mm?192mm?41mm (7.8??7.6??1.6?)

Net Weight

(without HDD)

0.55kg (1.2lb)

Gross Weight

1kg (2.2lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10?C ~ +45?C (+14?F ~ +113?F), 10~ 90% RH

Storage Conditions

-20?C ~ +70?C (-4?F ~ +158?F) , 0~ 90% RH

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
