Functionalities
- AMF unit with uninterrupted transfer
- ATS unit with uninterrupted transfer
- Remote start controller
- Manual start controller
- Engine controller
- Remote display & control unit
- Waveform display of V & I
- Harmonic analysis of V & I
- CTs at genset or load side
Description

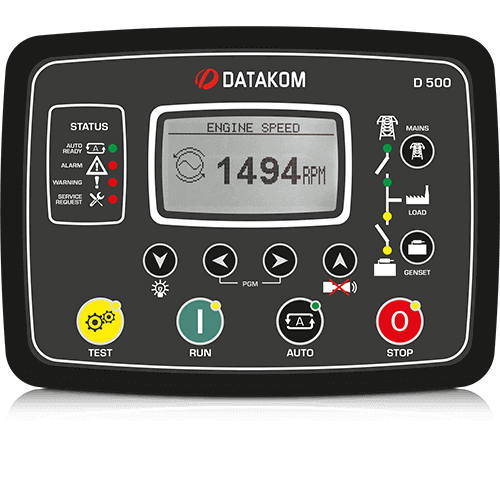

The D500 is a next-generation Genset control unit combining multi-functionality and wide communication possibilities together with a reliable and low-cost design. The unit complies and mostly exceeds worlds tightest safety, EMC, vibration and environmental standards for the industrial category.
Software features are complete with easy firmware upgrade process through the USB port. The Windows-based PC software allows monitoring and programming through USB, RS-485, and Ethernet. The PC based Rainbow Scada software allows monitoring and control of an unlimited number of
gensets from a single central location.
Topologies
- 3 phases 4 wires, star
- 3 phases 3 wires, 3 CTs
- 3 phases 3 wires, 2 CTs (L1-L2)
- 3 phases 3 wires, 2 CTs (L1-L3)
- 2 phases 3 wires, L1-L2
- 2 phases 3 wires, L1-L3
- 3 phases 4 wires, delta
- 1 phase 2 wires
Dimensions
brands |
DATAKOM
|
color |
Black
|
Technical Specifications
DC Supply Range: 9.0 to 33.0 V-DC.
DC power consumption:
200mA-DC typical @12V-DC
100 mA-DC typical @24V-DC
400 mA-DC max. @12V-DC
200 mA-DC max. @24V-DC
Alternator voltage: 0 to 330 V-AC (Ph-N), 0 to 570V Ph-Ph
Alternator frequency: 0-500 Hz.
Mains voltage: 0 to 330 V-AC (Ph-N) , 0 to 570V Ph-Ph
Mains frequency: 0-500 Hz.
Current Inputs: from current transformers. ../5A.
CT Range: 5/5A to 5000/5A
VT Range: 0.1/1 to 6500 / 1
kW Range: 0.1kW to 65000 kW
Accuracy:
Voltage: 0.5%+1digit
Current: 0.5%+1 digit
Frequency: 0.5%+1 digit
Power(kW,kVAr): 1.0%+2digit
Power factor: 0.5 %+1digit
Digital inputs: input voltage 0 to 36 V-DC.
Analog input range: 0-5000 ohms.
Mains and genset contactor outputs: 16Amps@250V
DC Outputs: Protected mosfet semiconductor outputs, rated 1Amp@28V-DC
Cranking dropouts: survives 0V for 100ms.
Magnetic pickup voltage: 0.5 to 30V-RMS.
Magnetic pickup frequency: 10 to 10000 Hz.
Charge Alternator Excitation: 100mA @12VDC, 200mA @24VDC
USB Device: USB 2.0 Full speed
RS-485 Port: selectable baud rate
RS-232 Port: selectable baud rate
Logic Level SerialPort: selectable baud rate
Operating temperature: -20?C to 70?C (-4 to +158 ?F).
Storage temperature: -40?C to 80?C (-40 to +176?F).
Maximum humidity: 95% non-condensing.
IP Protection: IP54 from front panel, IP30 from the rear.
Dimensions: 200 x 148 x 46mm (WxHxD)
Panel Cut-out Dimensions: 176 x 121 mm minimum.
Weight: 450 g (approx.)
Case Material: High Temperature, non-flammable, ROHS compliant ABS/PC
Mounting: Flush mounted with rear retaining plastic brackets.
EU Directives Conformity
-2006/95/EC (low voltage)
-2004/108/EC (electro-magnetic compatibility)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
UL Compatibility: UL 6200, Controls for Stationary Engine Driven Assemblies (Certificate Number – 20140725-E314374)
CSA Compatibility: CAN/CSA C22.2 No. 14-2005 ? Industrial Control Equipment
